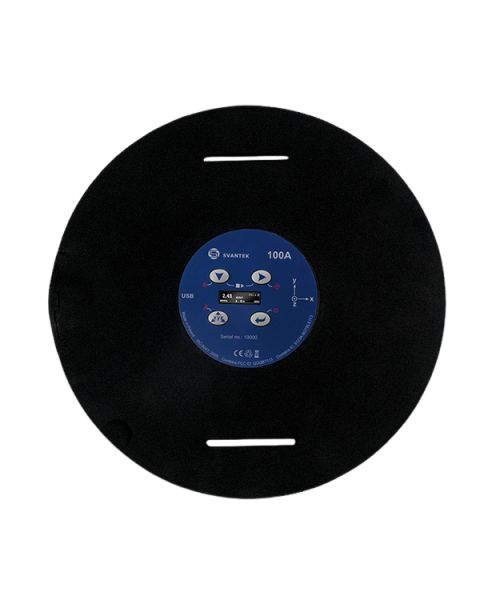

Svantek SV 100A Whole-Body Vibration Dosimeter (0.01–157 m/s²; 0.1–180 Hz)

Standards: ISO 8041-2:2021; ISO 8041-1:2017; ISO 2631-1:1997; ISO 2631-2:2003; ISO 2631-5:2018

Meter Mode: aw (RMS whole-body), awmax (RMS max whole-body), VDV, MaxVDV, awv (vector whole-body), A(8) daily exposure, ELV time (time left to limit), EAV time (time left to action), MTVV, Max, Peak, Peak-Peak

Filters: Wd, Wk, Wm, Wb (ISO 2631) and corresponding band limiting filters according to ISO 8041

Motion Sickness Filter: Wf for measurements according to ISO 2631-1 (optional)

RMS & RMQ Detectors: Digital true RMS & RMQ detectors with Peak detection, resolution 0.1 dB

Measurement Range: 0.01 m/s² RMS ÷ 157 m/s² Peak

Frequency Range: 0.1 Hz ÷ 180 Hz

Data Logger: Time-history data including meter mode results and spectra

Time-Domain Recording: Simultaneous x, y, z time-domain signal recording (optional)

Analyser: 1/1 octave real-time analysis (optional) with center frequencies from 0.12 Hz to 128 Hz

1/3 Octave Analysis: Real-time analysis (optional) with center frequencies from 0.1 Hz to 128 Hz

Accelerometer: Built-in tri-axial MEMS based

Memory: 8 GB

Display: OLED 128 × 32 pixels

Interfaces: USB 2.0 client, Bluetooth wireless interface, operator presence detector

Power Supply: Ni-MH rechargeable cells, operation time > 24 hours

USB Interface: 500 mA HUB

Environmental Conditions: Temperature from -10 °C to 50 °C; humidity up to 90 % RH, non-condensed

Dimensions: Ø 235 mm × 12 mm

Weight: Approximately 500 grams
