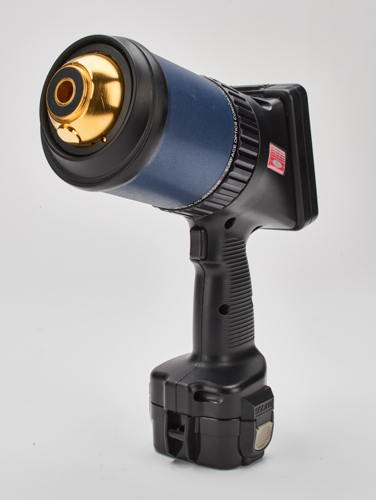

Surface Optics SOC410-DHR Directional Hemispherical Reflectometer (9-1.1, 1.9-2.4, 3.0-4.0, 3.0-5.0, 4.0-5.0, 8.0-12.0 microns)

Specification

Measured data

Measured Parameter: Directional hemispherical reflectance (DHR)

Method: Integrated total reflectance in a band for a given angle of incidence

Measured Value: Absolute reflectance (0-1)

Calculated Value: In-band emissivity

Wavelength Bands (microns): 9-1.1, 1.9-2.4, 3.0-4.0, 3.0-5.0, 4.0-5.0, 8.0-12.0

Angle of Incidence: 20° & 60° from normal incidence

Performance

Accuracy: +/- .03

Measurement Time: 10 sec (6 bands, 2 angles)

Surface Curvature: Any surface; convex 6” radius; concave 12” radius

Warm Up Time: 90 seconds

Power

Run Time: 2 hours on one battery. Battery easily replaced with continuous operation after battery replacement

Power Source: Rechargeable battery (standard environmentally friendly NiMH)

Battery Recharge Time: 1 hour

IR Source: Kanthal filament operated at about 1.000°C

Environment

Storage: -25 to 70°C

Operating: 0 to 40°C

Interface

Operator Interface: LCD graphics screen, 1/4 VGA, touch screen, software buttons; trigger switch in handle

Inspection Applications: Pass/fail can be incorporated, user set values

Diagnostics: On screen status and signals monitor. Signal values stored with data. Raw data collection and display.

Dimensions

Weight: 4.7 lbs

Form Factor/Size: H 11.54”, L 9.04”, W 3.27”

Data

Format: Data files can be opened and post processed with Excel or a text processor

Storage: Removable SanDisk(SD) card

APPLICATIONS

Military

Semiconductor manufacturing

Aerospace
