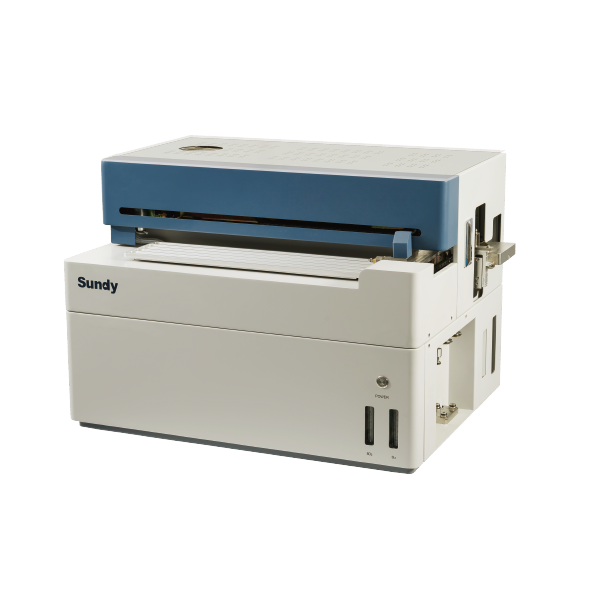

Sundy SDICS450 Infrared Carbon and Sulfur Analyzer (Carbon 0.1%–100%, Sulfur 0.01%–50%)

Test Method: Infrared Absorption

Measuring Range: Carbon 0.1%–100%, Sulfur 0.01%–50% (can be extended to 100%)

Standards: ISO 29541, ISO 609, ISO 19579, ASTM D1552, ASTM D3177, ASTM D4239, ASTM D5016, ASTM D5373, GB/T 25214, GB/T 28732, AS 1038.6.3.3, BS 1016

Sulfur Resolution: 0.001%

Analysis Time/Sample: 110s–210s

Max. Quantity of Sample: 50

Sample Weight: 100~500mg (100mg recommended)

Furnace Temperature: 1250℃–1350℃

Gas Requirement: Oxygen (purity ≥99.5%, 99.9% purity recommended, no electrolytic oxygen)

Temperature Control Precision: ±1℃

Temperature Sensor: Thermocouple

Power Requirement: AC 220V (-15%~10%) 50/60Hz

Max. Power: 4.5kW

Max. Temperature: 1450℃

Sample Introduction: Automatic

Operational Control: Windows®-based software on external PC

Operation Cost: Oxygen consumption lowered by intelligent gas supplying system. Desiccant: Dehydrite which is of higher cost

Dimensions: 890x670x650mm

Weight: 135kg

Advance Calculation: Yes

Analysis Report: Yes

Statistics Report: Yes

System Monitor: Yes

Sundy SDICS450 Infrared Carbon and Sulfur Analyzer can be used to determine the carbon and sulfur content in coal, coke, ash, biomass fuels and other combustibles in fields of power plants, coal mines, paper plants, metallurgy, petrochemical, steel factory etc.
