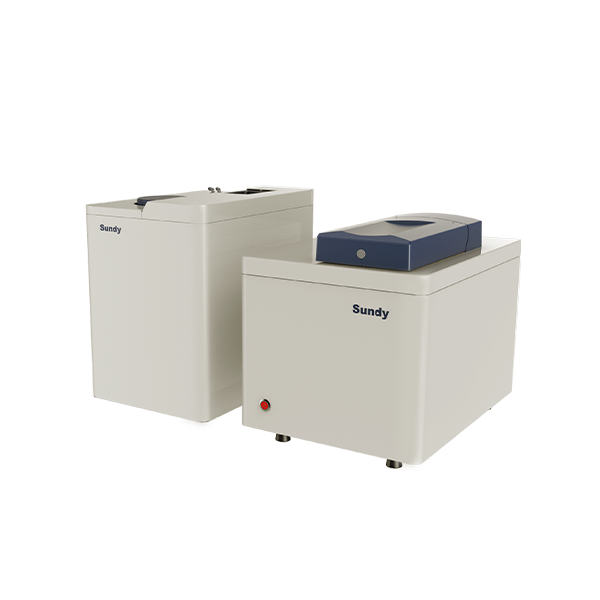

Sundy SDACM3200 Bomb Calorimeter (≤14min; 0.0001K)

Analysis Time: ≤14min

Temperature Resolution: 0.0001K

Precision (RSD) (1g Benzoic Acid): ≤0.15%

Heat Capacity Stability: ≤0.25% within three months

System Structure: Benchtop / vertical

Conformance with Standard: ISO 1928, ISO 9831, ISO18125, ASTM D5865, ASTM D240, ASTM D4809, ASTM E711, ASTM D5468, GB/T 213, GB/T 30727, AS 1038.5, BS EN 15400, BIS1350

Test per Hour: 2~4

Bomb volume: 282ml

Calorimeter Type: Isoperibol

Oxygen Filling: Semi-automatic

Bomb Washing: Manual

Max. Bomb pressure: 20Mp

Bomb Identity: Yes

Gas Requirement: 99.5% Oxygen

Water Requirement: Distilled Water

Energy Measurement Range: 0~50000J

Bucket Filling: Automatic

Constant Volumetric Tank with Temp Control Device: Bucket determine water volume automatically

Independent Bucket and Jacket Water System: Yes

Stirring Method: Blade

Power Inverter: No

Reproducibility based on analysis of 1g Benzoic Acid: 0.15%

Average Temperature Increase: 2℃

Temperature Measurement: PT1000

Working Temperatures: ≤32℃

Cooling method: Automatic by water circulation

Network: Yes

Power: AC 220V (-10% +10%) 50/60Hz

Max. Power: 0.6KW

Dimension: Main body: 500600425 / Water Tank: 550356520

Weight: 65kg

Advance Calculation: Yes

Analysis Report: Yes

Statistics Report: Yes

System Monitor: Yes

SDACM3200 can be used to determine the calorific value of solid and liquid combustibles such as coal, coke, petroleum oil, cement black meal, biomass fuels as well as building material.

Most cost effective model with reliable results.

Analysis time ≤14min
