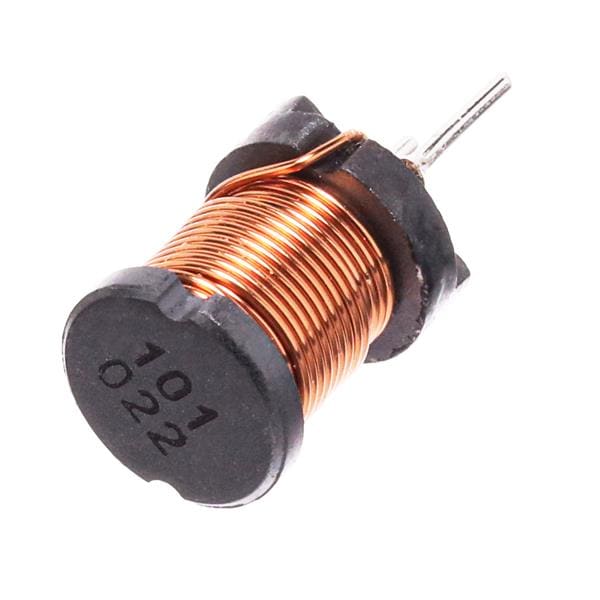

Sumida RCH8011NP-101L Wirewound 100uH 1.5A 15% THRU HOLE INDUCTOR
ManufacturerSumida(View more products from this manufacturer)
ModelRCH8011NP-101L
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Length: 10.8 mm
Diameter: 8.3 mm
Shielding: Unshielded
Tolerance: 15 %
Inductance: 100 uH
Application: Power
Termination: Standard
Unit Weight: 1.600 g
Lead Spacing: 5 mm
Core Material: Ferrite
Lead Diameter: 0.7 mm
Mounting Style: PCB Mount
Test Frequency: 100 kHz
Termination Style: Radial
Maximum DC Current: 1.5 A
Saturation Current: 1.5 A
Maximum DC Resistance: 215 mOhms
Maximum Operating Temperature: + 100 C
Minimum Operating Temperature: - 30 C
