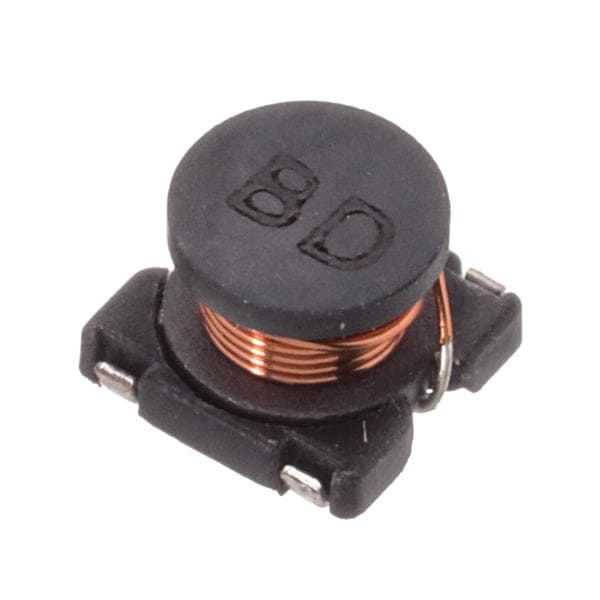

Sumida CR32NP-120KC Power Inductor 12uH 0.685A 10% SMD PWR INDUCTOR
ManufacturerSumida(View more products from this manufacturer)
ModelCR32NP-120KC
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Width: 3.5 mm
Height: 3 mm
Length: 3.8 mm
Core Type: Wirewound
Shielding: Unshielded
Tolerance: 10 %
Inductance: 12 uH
Application: Power
Termination: Standard
Unit Weight: 85 mg
Core Material: Ferrite
Mounting Style: PCB Mount
Termination Style: SMD/SMT
Maximum DC Current: 685 mA
Maximum DC Resistance: 270 mOhms
Maximum Operating Temperature: + 100 C
Minimum Operating Temperature: - 40 C
