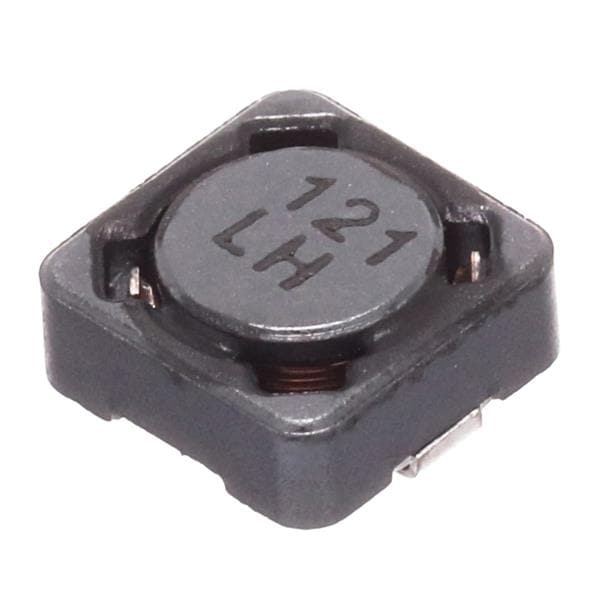

Sumida CDRH73NP-121MC-B Power Inductor 120uH 0.49A 20% SMD PWR INDUCTOR
ManufacturerSumida(View more products from this manufacturer)
ModelCDRH73NP-121MC-B
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Width: 7.5 mm
Height: 3.4 mm
Length: 7.5 mm
Core Type: Wirewound
Shielding: Shielded
Tolerance: 20 %
Inductance: 120 uH
Application: Power
Termination: Standard
Unit Weight: 630 mg
Core Material: Ferrite
Mounting Style: PCB Mount
Test Frequency: 1 kHz
Termination Style: SMD/SMT
Maximum DC Current: 490 mA
Maximum DC Resistance: 890 mOhms
Maximum Operating Temperature: + 100 C
Minimum Operating Temperature: - 40 C
