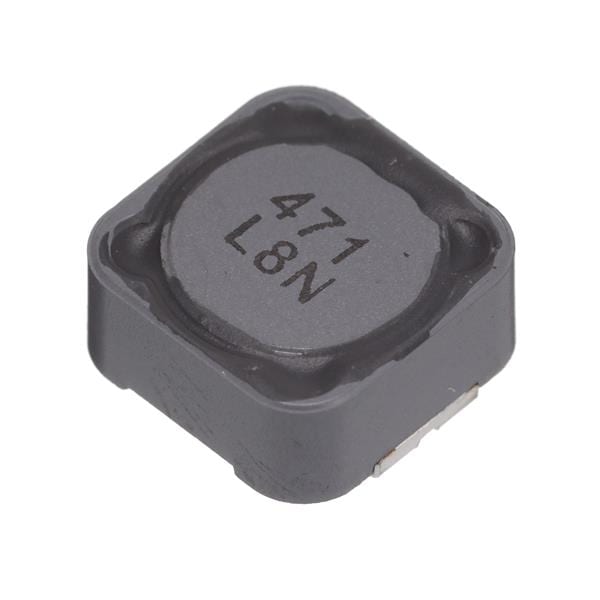

Sumida CDRH125NP-471MC Power Inductor 470uH 0.58A 20% SMD PWR INDUCTOR
ManufacturerSumida(View more products from this manufacturer)
ModelCDRH125NP-471MC
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Width: 12.3 mm
Height: 6 mm
Length: 12.3 mm
Core Type: Wirewound
Shielding: Shielded
Tolerance: 20 %
Inductance: 470 uH
Application: Power
Termination: Standard
Unit Weight: 3 g
Core Material: Ferrite
Mounting Style: PCB Mount
Test Frequency: 1 kHz
Termination Style: SMD/SMT
Maximum DC Current: 580 mA
Saturation Current: 760 mA
Maximum DC Resistance: 770 mOhms
Maximum Operating Temperature: + 100 C
Minimum Operating Temperature: - 40 C
