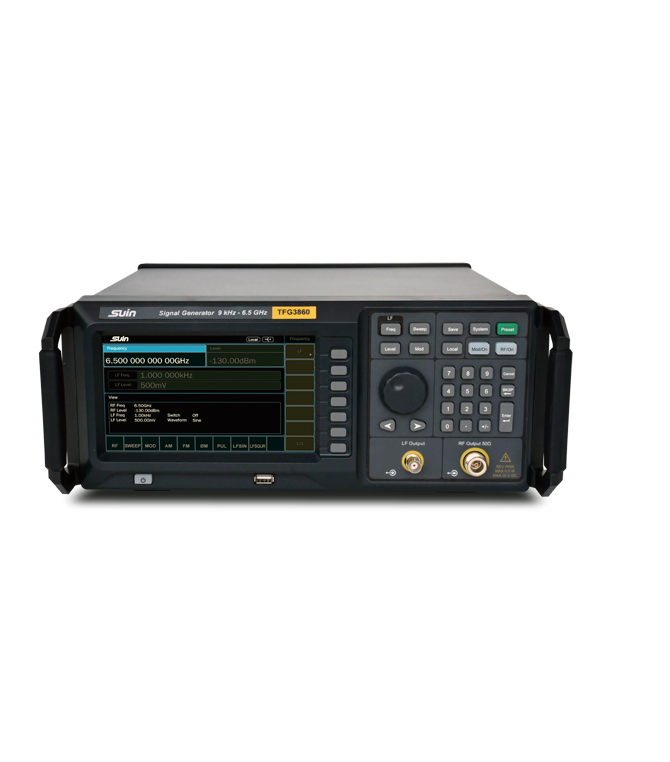

SUIN TFG3860 RF Signal Generator (9KHz ~ 6.5GHz)

Frequency

Range: 9 kHz~6.5 GHz

Resolution: 0.01 Hz

Spectral Purity

SSB Phase Noise (CW mode, carrier offset=20 kHz,1 Hz bandwidth)

100 kHz≤f≤1.6 GHz<-110 dBc/Hz (typ.)

1.6 GHz≤f≤3.6 GHz<-107 dBc/Hz(typ.)

3.6 GHz<f≤6.5 GHz<-105 dBc/Hz(typ.)

Harmonic: <-30 dBc

Spurious: <-55 dBc

Level

Output level range: -120 dBm~+13 dBm

Resolution: 0.01 dB

Abosolute Level Uncertainty: ≤0.7 dB(typ.)

Internal Modulation Generator (LF)

Waveform: Sine/Square

Frequency Range

SineDC~200 kHz

SquareDC~20 kHz

Frequency Resolution: 0.01 Hz

Voltage Range

AC0~3 V

DC-3 V~3 V

Voltage Resolution: 2 mV

Sweep

Function: Frequency Sweep, Level Sweep

Sweep type:

Step sweep(equally spaced level steps)

List sweep(list with arbitrary level steps)

Sweep mode: Single, continuous

Sweep range: Full frequency range, Full level range

Modulation

Type: AM, FM, ΦM, Pulse Mod.

General Characteristics

Power: AC 100 V~240 V, 50/60 Hz(1±10%), 60 VA

Dimension & Weight: 364*154*388mm, 8kg

Standard Accessories

Power Cord: 1

N-BNC Connector: 1

CD (Software+User’s Guide): 1

RF signal generator that covers the frequency range from 9 kHz to 6.5 GHz would typically be classified as a wideband signal generator, suitable for a variety of applications including telecommunications, research and development, and testing of RF components.

9KHz to 6.5GHz RF signal generator is an indispensable tool for professionals in telecommunications, electronics manufacturing, defense, and research. Its wide frequency range, high signal purity, and versatile modulation capabilities make it ideal for a multitude of applications, ensuring precise and reliable performance in various testing scenarios.
