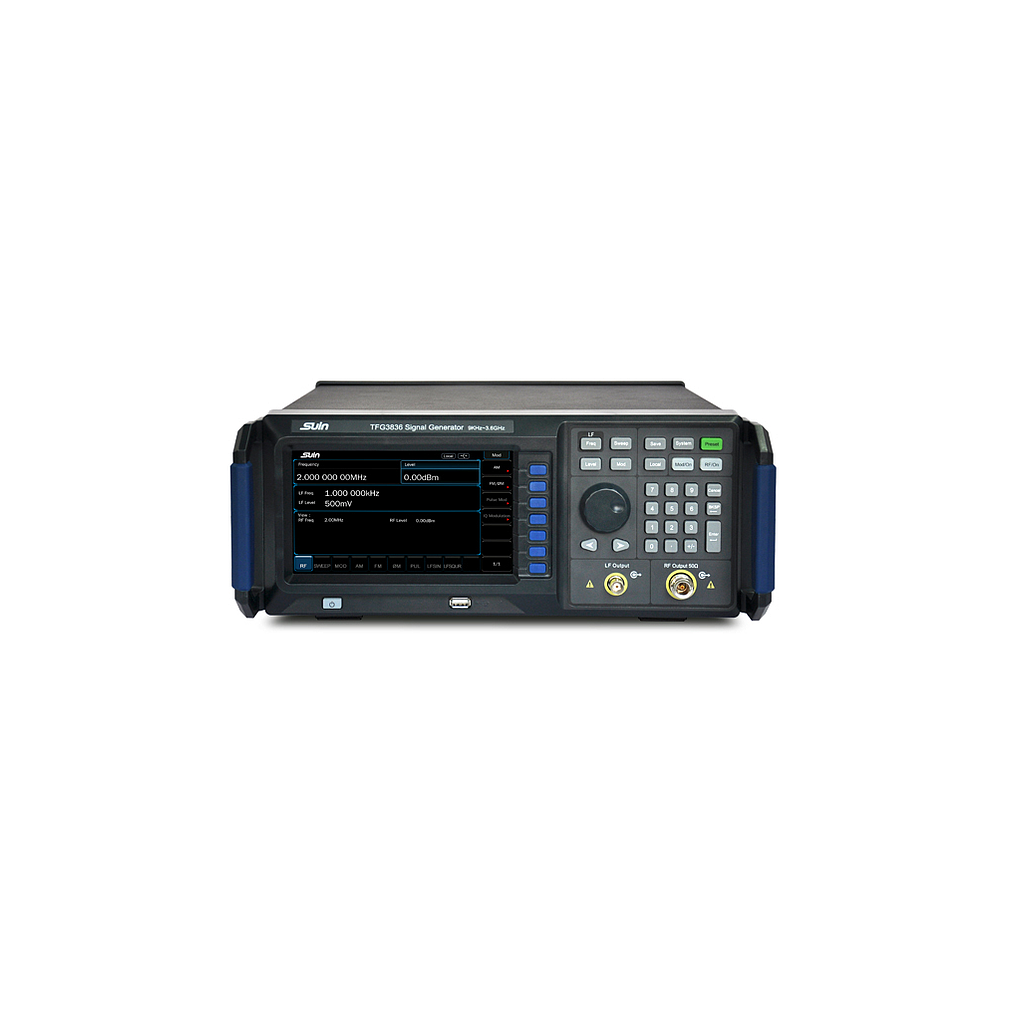

SUIN TFG3836 RF Signal Generator (9kHz ~ 3.6GHz)

Frequency

Range: 9kHz ~ 3.6GHz

Resolution: 0.01Hz

Spectral Purity

Harmonic(CW mod, 1MHz≤f≤3.6GHz, level≤+13 dBm): <-30 dBc

Non-harmonic(CW mod, level>-10 dBm, carrier offset>10kHz)
100kHz≤f≤2.4GHz: <-60dBc,<-70 dBc (typ.)

2.4GHz<f≤3.6GHz: <-54dBc,<-64 dBc (typ.)

SSB Phase Noise(CW mod, carrier offset=20kHz, 1Hz bandwidth)
100kHz≤f≤2.4GHz: <-105dBc/Hz,<-110 dBc/Hz (typ.)

2.4GHz<f≤3GHz: <-100dBc/Hz,<-105 dBc/Hz (typ.)

3GHz<f≤3.6GHz: <-94dBc/Hz,<-105 dBc/Hz (typ.)

Level

Setting Range: -110dBm to +20dBm

Specified Range: -110dBm to +13dBm

Resolution: 0.01dB

Accuracy: 100kHz≤f≤3.6GHz: ≤ 1 dB, ≤ 0.5 (typ.)(output level:+13dBm ~ -10dBm)≤ 2 dB, ≤ 0.7 (typ.)(output level:-60dBm ~ -110dBm)

VSWR: 1MHz≤f≤3.6GHz<1.8 (typ.)

Internal Modulation Generator (LF)

Waveform: Sine Square

Frequency Range

Sine: DC~200kHz

Square: DC~20kHz

Resolution: 0.01Hz

Voltage Range: AC: 0 ~ 3v, DC:-3V ~ 3V

Sweep

Function: Frequency Sweep, Level Sweep

Modulation

Type: AM, FM, φM, Pulse modulation

General Characteristics

Power: AC 100~240V, 50/60Hz(1±10%), 60VA

Dimension & Weight: 364×154×388 mm, 6kg

Standard Accessories

Power Cord: 1

N-BNC Connector: 1

CD (Software+User’s Guide): 1

Suin’s TFG3836 RF signal generators have a frequency range from 9KHz to 3.6GHz. Except of normal analog modulation such as AM, FM and φM, it can also provide pulse modulation. In addition, sweep capability for frequency and power could also be supported.

With higher accuracy and pure output, the TFG3836 could be the good choice for R&D, education and manufacturer.
