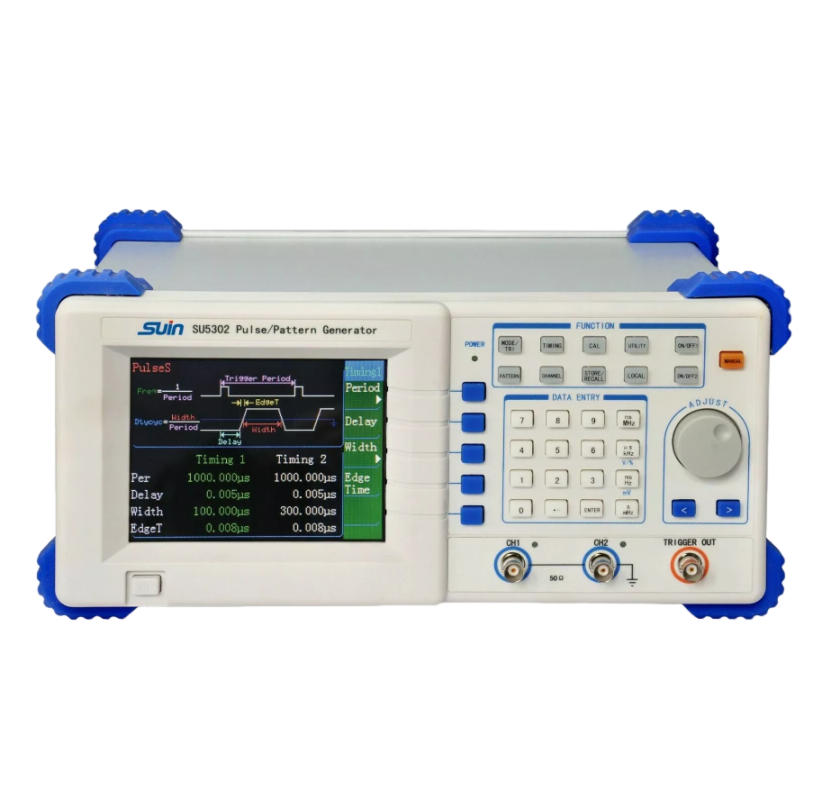

SUIN SU5302 Digital Pulse Pattern Generators (2 CH, display: 5.7' TFT LCD, 20ns ~ 10000s)

Channel:2

Waveform

Pulse: Single/Dobule, Logic Positive /Negative

Edge Time: 8ns ~ 1ms

Overshoot: ≤ 10%

Time

Pulse Period: 20ns ~ 10000s (frequency range: 0.1mHz ~ 50MHz)

Time Interval: 5ns ~ 10000s

Resolution: 5ns (Low range), 10μs (High range

Interval Error: ± (T×5×10-5 + 5ns)(Low range), ±(T×5×10-5 + 10μs) (High range)

Pattern:

Length: 4095bits

Format: NRZ

Rate: 100mHz ~ 50MHz

Resolution: 0.1Hz

Amplitude Offset

Amplitude Range: 50mV ~ 5V (50Ω)

Offset Range: 50mV ~ 5V (50Ω)

Output Impedance: 50Ω

TTL

TTL/COMS Level: Low Level≤ 0.3V, High Level≥3.0V (high impedance load)

Output Impedance: 50Ω

Burst

Burst Count: 2 ~ 65000 cycles

Burst Mode: Continuous, Signle

EXT. STD Input

Frequency: 10M mutiple

Amplitude: 0.5-5Vpp, AC coupling

Trigger

Trigger Mode: Internal, External, Manual

Ext. Trigger Input: Frequency: 1Hz ~ 10MHz (Square), Amplitude: 1Vpp ~ 20 Vpp

Input Impedance: ≥100kΩ

General Characteristics

Power: AC110-240V, 50/60Hz,<80VA

Display: 5.7' TFT LCD

Optional Interface: RS232(Standard)

Dimension & Weight: 330×155×300mm, ~ 4.2 kg

Standard Accessories

Power Cord: 1pcs

Testing cable: 1pcs

CD(Software+ User's Guide): 1pcs

SU5000 Series Digital Pattern Generator Features

Direct Digital Synthesis Technology

Crystal Oscillation Reference

High Accurate Time and Frequency

Count burst or single burst both can be selected

Multiple output channels and EXT

Trigger/Frequency Standard Input channels

Data Storage and Recall

Optional GPIB and USB interface
