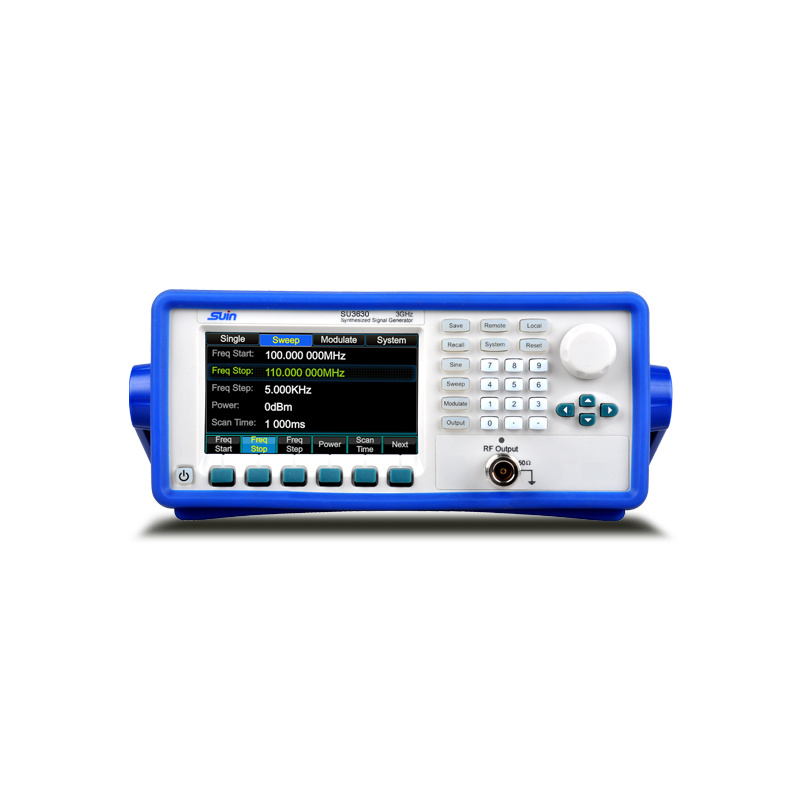

SUIN SU3630 Signal Generator (25MHz~3GHz, 3Hz)

Frequency

Range: 25MHz~3GHz

Resolution: 3Hz

Reference Frequency

Reference Output: Frequency: 10MHz Level: >0dBm

Port: BNC connector

Reference Input:Frequency: 10MHz Power: -3~+7dBm

Input Port: BNC connector

Impedance(nominal): 50Ω

Phase Noise: -90dBc~-115dBc Offset 20kHz

Spurious

Harmonic: <-35dBc (Power: ≤-5dBm)

Non-harmonic: <-60dBc

Power

Power Range: -60dBm~+10dBm

Resolution: 0.25dB

Accuracy

±(1.0+2% absolute value of setting value)dB (output frequency 25MHz~2250MHz)

±(1.0+4% absolute value of setting value)dB(output frequency 2200MHz~3000MHz)

Input SWR : <1.5 typical value

RF Output

Terminal: N type

Output Impedance: 50Ω

Pulse Modulation

Break-make Ratio: > 80dB

Rising/Falling Edge: < 100ns

Pulse Width: 0.25s Min.

Pulse Period: 0.5s Min.

Sweep

Frequency Sweep: Sweep Mode: Linear Min. Step: 3Hz

Power Sweep: Sweep Mode: Linear Min. Step: 0.25dBm

General Characteristics

Power: AC 100V~240V, 50/60Hz, 50VA Max

Dimension & Weight: 386mm×256mm×123mm, <5kg

SU3630 Synthesized Signal Generator Standard Accessories

Power Cord: 1pcs

CD(Software+User's Guide): 1pcs

SU3630 Synthesized Signal Generator Features

Simple and easy to operate

Up to -115dBc phase noise

 Up to +13dBm output power
Flexible frequency and amplitude sweep function

Pulse modulation function

Standard interface of USB device and RS232
