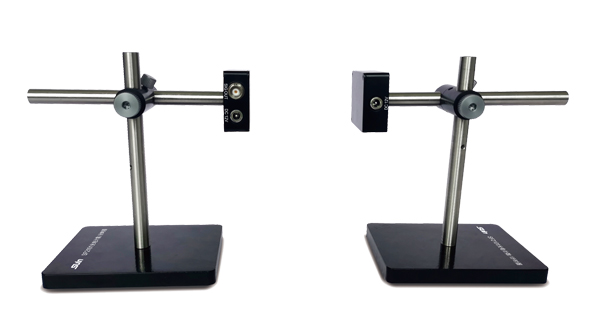

SUIN SF2101 Photoelectric Converter (+12V Square)

Converting accuracy: ≤0.1ms

Interface: BNC

Detected distance: ≤1m

Detected object: Untransparent objects with ≥Φ2mm

Output: +12V Square

Adapter: Input AC100-220V, 50/60Hz, output DC+12V

Power: Total current consumption ≤50mA for transmitting and receiving terminals

Required Test Device: Frequency Counter or Oscilloscope

General Characteristic

Working Environment

Temperature: 0~+40℃, RH:20~80%

Dimension & Weight: 185×120×90mm, approx. 3KGs

Design Reference

Verification regulation of time calibrator

Purpose

To verify actuation time of machinery such as stroke time of stopwatch fixture, bullet flying speed, object’s rotating speed, etc.

To count by pieces in production line.

Features

High precision photoelectric detector is introduced to ensure the accuracy and reliable.

Easy to use, high cost performance

Application

Metrological Service, factory, institutions, scientific research units
