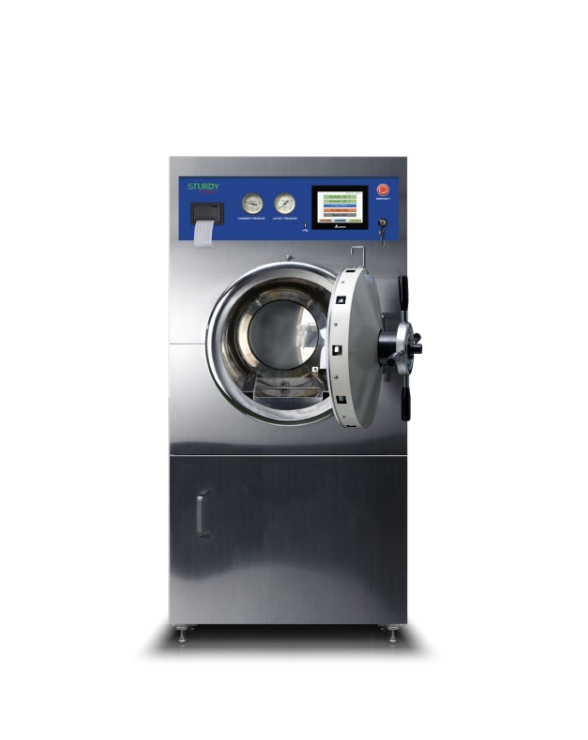

STURDY SAT-500HP Autoclave (196L)

Chamber Volume: 196 Liters (51.8 Gallons)

Heater Consumption: 9 kW

Max. Consumption: 13 kW

Chamber Type: Cylindrical

Chamber Material: # 304 Stainless Steel ( # 316L is Optional)

Chamber Door Material: # 304 Stainless Steel ( # 316L is Optional)

Voltage: 3~(phases), 50/60 Hz. 230 VAC / 380 VAC / 415 VAC / 440 VAC

Control System: Digital Temp. PLC Control

Operation Interface: 7" Full-color Touch Screen

Air Removal: Pre-Vacuum

Dry: Post-Vacuum

Data Recorder: Use flash disk as internal storage

Data Printer: Dot matrix printer

Warm-up Function: YES

Fill Water System: Automatic (Water pressure 2 bar required)

Water Pump: Optional

Double Door Configuration: Optional

Altitude: ≤ 4,000 m

Program:

Universal 121 °C

Universal 134 °C (Altitude < 2000m)

Universal 126 °C (Altitude ≥ 2000m)

Liquid Mode

Dry Mode

Manual Mode

Leakage Test

B & D TEST

Helix Test

Datasheet
