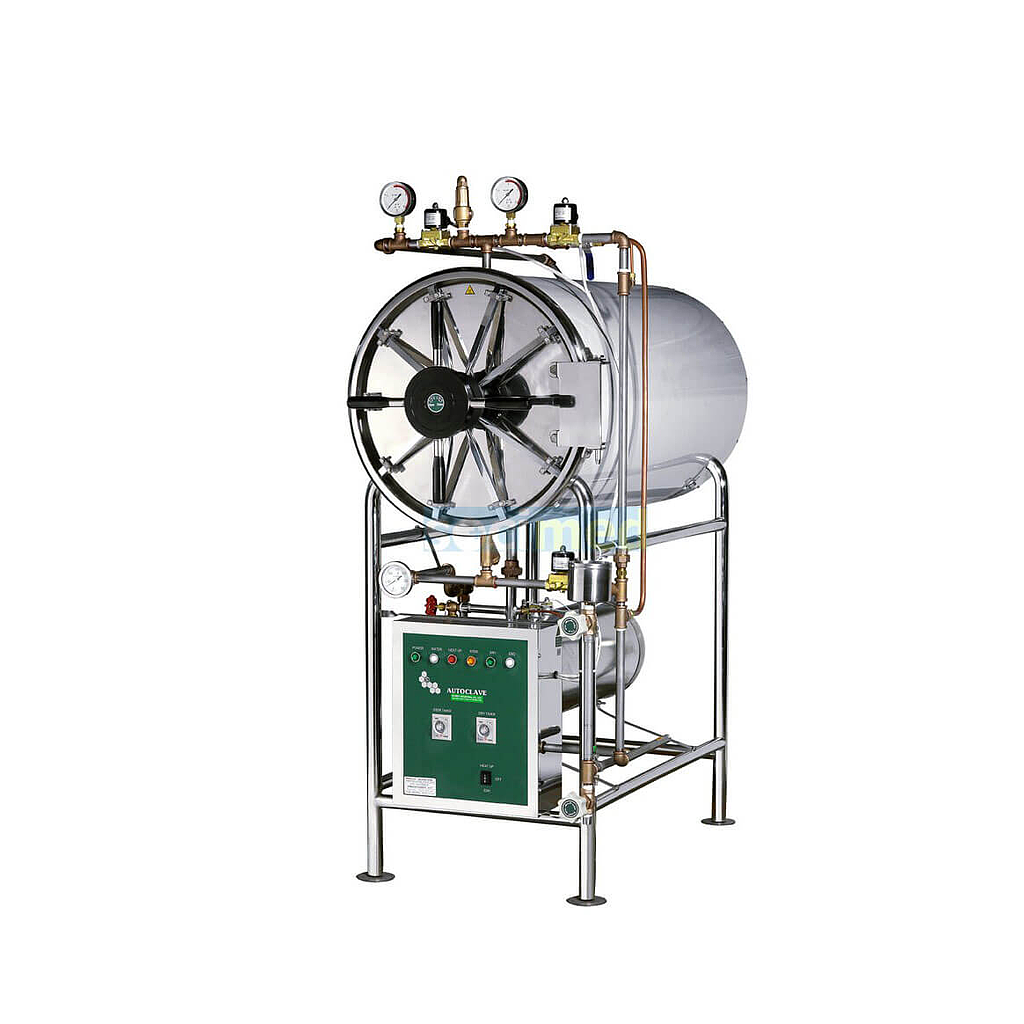

STURDY SA-500A Sterilizer (196 L)

Autoclave Type: Horizontal chamber

Chamber Capacity: 196 liters

Chamber Dimensions (Ø x Depth): 500 x 1000 mm

External Dimensions: 800 x 1800 x 1350 mm

Power Consumption: 9 KW

Chamber Material: Stainless Steel #304

Chamber Design Standard: ASME standard

Power Supply: 230V single-phase or 380V three-phase, 50/60Hz

Sterilization Time Setting: Adjustable from 0 to 60 minutes. Suitable for sterilizing wrapped or unwrapped samples (instruments).

Sterilization Pressure: 1.4 kgf/cm² (1 kgf/cm² = 0.98 bar = 14.2 psi), approximately 126℃

Automatic Drying Function: Adjustable drying time from 0 to 60 minutes

Compliance Standards: CE 0575 PED, ISO 9001, and ISO 13485

Safety Features:

Pressure Safety Valve: Set to 1.8 kgf/cm²

Overpressure Protection: 2 overpressure protection switches

Overtemperature Protection

Water Level Sensor in the Steam Generator: High and low level

Emergency Drain Switch

Electrical Circuit Safety System
