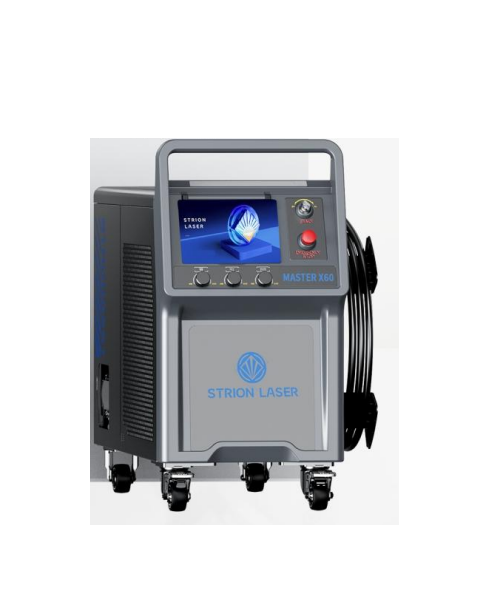

Strion Laser MASTER X60 Laser Welding Machine (2000W, 20~300 cm/min)

Rated Input Voltage: Three Phase 380V

Input Power Frequency (Hz): 50/60

Laser Power (W): 2000

Rated Input Power (W): 6800

Welding Speed (cm/min): 20~300

Cooling System: Dual-Circuit Refrigerant Direct Cooling System

Operating Temperature (°C): -30~60

Storage Temperature (°C): -40~70

Operating Humidity (%): 0~90

Applicable Wire Diameter (mm): 1.0/1.2/1.6/2.0

Process Packages: >20

Output Mode: Integrated Armored Cable + Welding Torch

Armored Cable Length (m): standard 5m（MAX. 20m)

Welding Mode: Continuous welding / Spot welding

Dimensions (mm): 912×420×722

Weight (kg): 50

Welding ability:

Aluminum: <6mm

Stainless steel:  ≤6mm

Carbon steel: ≤6mm
