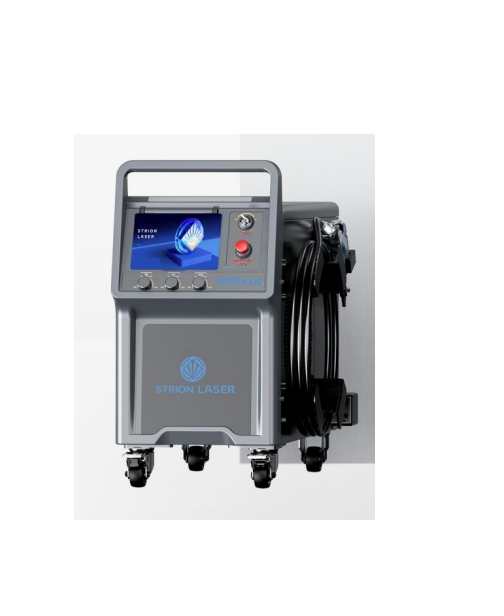

Strion Laser MASTER X50 Laser Welding Machine (1500W, 20~300 cm/min)

Rated Input Voltage: Single Phase 220V

Input Power Frequency (Hz): 50/60

Laser Power (W): 1500

Rated Input Power (W): 5000

Welding Speed (cm/min): 20~300

Cooling System: Dual-Circuit Refrigerant Direct Cooling System

Operating Temperature (°C): -30~60

Storage Temperature (°C): -40~70

Operating Humidity (%): 0~90

Applicable Wire Diameter (mm): 0.8/1.0/1.2/1.6

Process Packages: >20

Output Mode: Integrated Armored Cable + Welding Torch

Armored Cable Length (m): standard 5m (MAX. 20m)

Welding Mode: Continuous welding / Spot welding

Dimensions (mm): 912×420×722

Weight (kg): 50

Welding ability:

Aluminum: <5mm

Stainless steel:  ≤5mm

Carbon steel: ≤5mm
