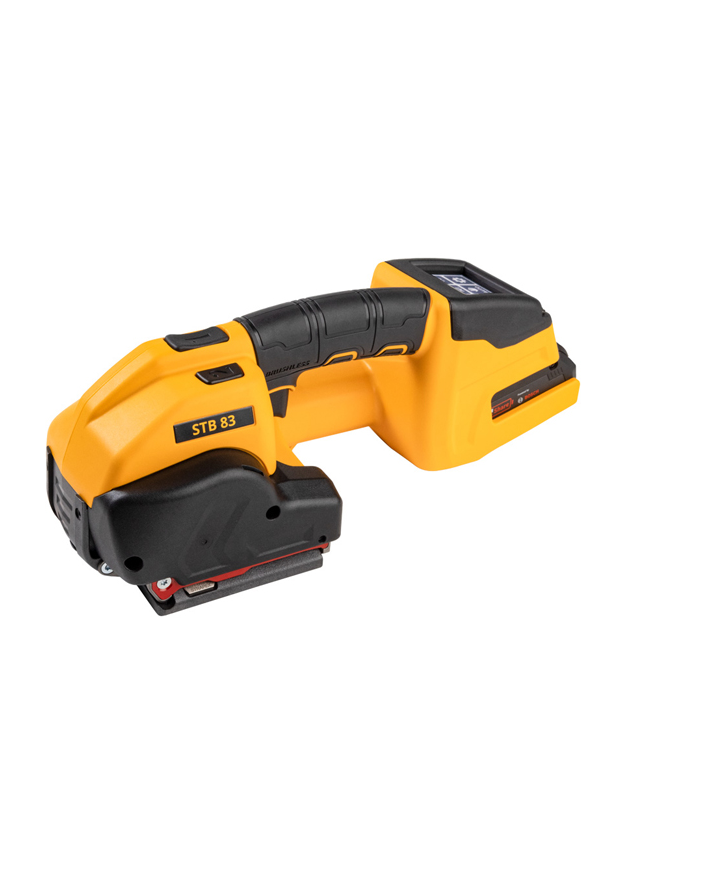

Strapex STB 83 Plastic Strapping Tools (PET: 900 – 2500 N, PP: 400 – 1360 N)

Operation mode: auto / semi / manual

Tension force range

PET: 900 – 2500 N

PP: 400 – 1360 N

Variable tension speed range: 0 – 220 mm/s (8.6 in/s)

Weight (incl. battery): 4.0 kg (8.8 lb)

Dimension (L x W x H):  367 x 149 x 135 mm (14.5” x 5.9” x 5.3”)

Working temperature: -10°C to +40°C (14-104 °F)

Relative humidity: up to 90%

Sealing (joint type): friction weld seal

Joint strength*: up to 75 – 85%

*Value depends on strap quality

Battery / charger

Charger type: Bosch GAL 1840 CV

Battery charger voltage: 100 or 110 or 230 V

Charging time: 48 – 65 min

Battery type: Bosch Li-Ion 18V, 4.0 Ah

Strap:

Strap: PET (Polyester), PP (Polypropylene)

Width: 12 – 13, 15 – 16 mm (1/2”, 5/8”)

Thickness: 0.5 – 1.0 mm (.019”–.040”)

Datasheet
