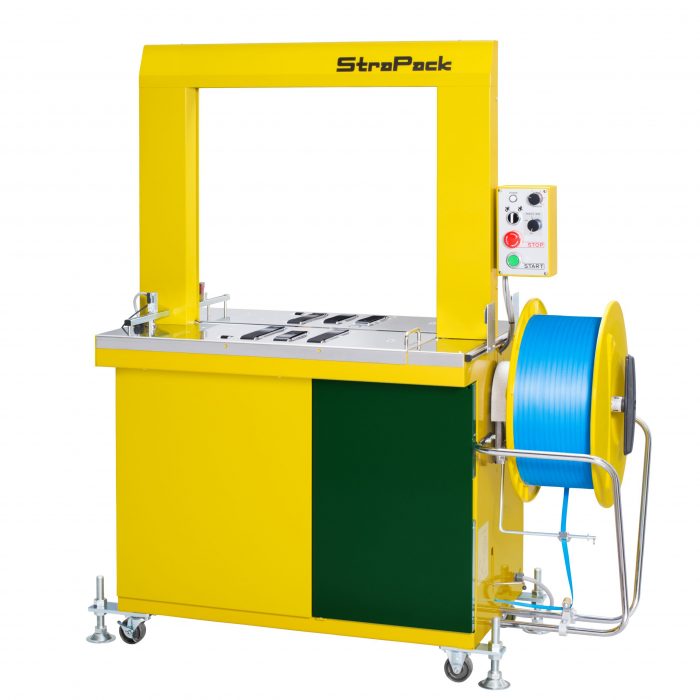

Strapack RQ-8A Fully Automatic Strapping Machine (W650mm, H500mm)

- Arch Size: W650 x H500 mm (W25" x H20")
- Machine dimension Width: 1252 mm (49 1/4")
- Height: 1403 mm (55 1/4")
- Depth: 611 mm (24")
- Conveyor height: 798 mm (31 3/8")
- Strap Width: 5, 6, 9, 12mm (1/4", 3/8", 1/2", 5/8")
- Power supply: Three phase 0.85kVA (single phase optional)
- Maximum Package Weight:
FB3 20kg
FB5 35kg
FB6 40kg
- Minimum Package Weight: 3kg
- Minimum Package Size:
W170 X H100 X L230 mm (W6 3/4" X H3 7/8" X L9")
- Maximum Package Weight: Maximum Conveyor Speed (per min.)
20 kg: 30 m
30 kg: 20 m
40 kg: 15 m
