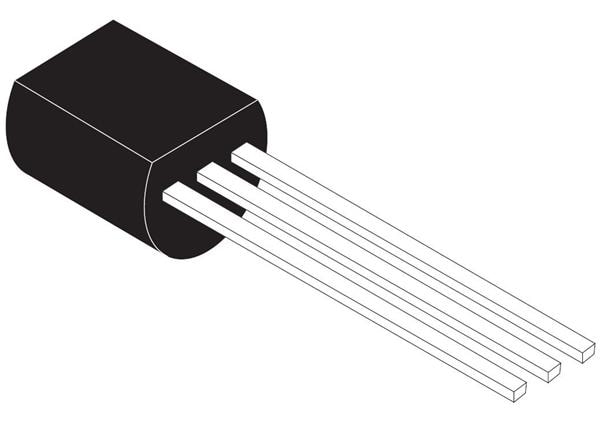

STMicroelectronics X0202NA2BL2 SCRs 1.25A sensitive gate
ModelX0202NA2BL2
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Mounting Style: Through Hole
Holding Current Ih Max: 5 mA
Gate Trigger Current - Igt: 200 uA
Gate Trigger Voltage - Vgt: 800 mV
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 40 C
On-State RMS Current - It RMS: 1.25 A
Non Repetitive On-State Current: 25 A
Maximum Gate Peak Inverse Voltage: 8 V
Off-State Leakage Current @ VDRM IDRM: 5 uA
