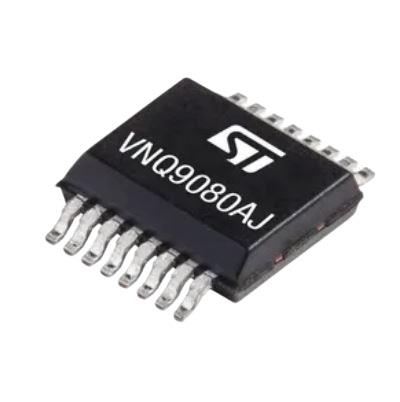

STMicroelectronics VNQ9080AJTR High-Side Quad channel high-side driver Current Sense analog feedback for automotive

Logic Type: CMOS

Technology: Si

Unit Weight: 123 mg

Configuration: Non-Inverting

Qualification: AEC-Q100

Mounting Style: SMD/SMT

Output Current: 2.2 A

Development Kit: EV-VNQ9080AJ

Number of Drivers: 4 Driver

Number of Outputs: 2 Output

Moisture Sensitive: Yes

Input Voltage - Max: 36 V

Supply Voltage - Max: 28 V

Supply Voltage - Min: 4 V

Operating Supply Current: 1 mA to 10 mA

Maximum Turn-On Delay Time: 120 us

Maximum Turn-Off Delay Time: 100 us

Maximum Operating Temperature: + 150 C

Minimum Operating Temperature: - 40 C

Rds On - Drain-Source Resistance: 86 mOhms
