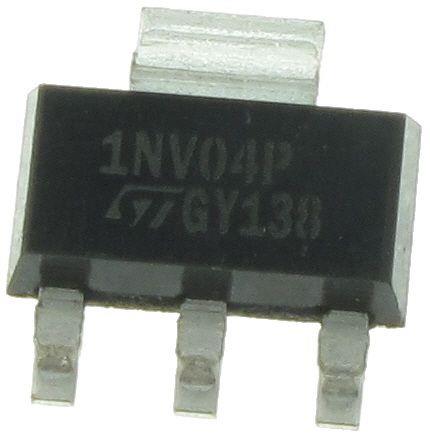

STMicroelectronics VNN1NV04PTR-E Low-Side 40V 1.7A OMNIFET

Shutdown: Yes

Fall Time: 200 ns

Rise Time: 170 ns

Technology: Si

Unit Weight: 250 mg

Qualification: AEC-Q100

Mounting Style: SMD/SMT

Output Current: 1.7 A

Number of Drivers: 1 Driver

Number of Outputs: 1 Output

Moisture Sensitive: Yes

Supply Voltage - Max: 36 V

Pd - Power Dissipation: 7 W

Operating Supply Current: 100 uA

Maximum Turn-On Delay Time: 200 ns

Maximum Turn-Off Delay Time: 1000 ns

Maximum Operating Temperature: + 150 C

Minimum Operating Temperature: - 40 C

Rds On - Drain-Source Resistance: 250 mOhms
