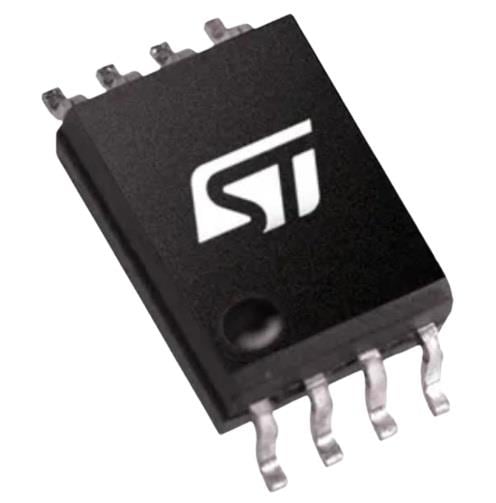

STMicroelectronics TSX9292IDT Operational Amplifiers 5 V to 16 V 10 pA Input Bias Current

Shutdown: No Shutdown

Unit Weight: 506.600 mg

Mounting Style: SMD/SMT

SR - Slew Rate: 27 V/us

THD plus Noise: 0.0003 %

Number of Channels: 2 Channel

Supply Voltage - Max: 16 V

Supply Voltage - Min: 4 V

Ib - Input Bias Current: 100 pA

Operating Supply Current: 3.1 mA

Operating Supply Voltage: 4 V to 16 V

Ios - Input Offset Current: 100 pA

Output Current per Channel: 82 mA

Vos - Input Offset Voltage: 4 mV

GBP - Gain Bandwidth Product: 16 MHz

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C

en - Input Voltage Noise Density: 17.9 nV/sqrt Hz

CMRR - Common Mode Rejection Ratio: 85 dB
