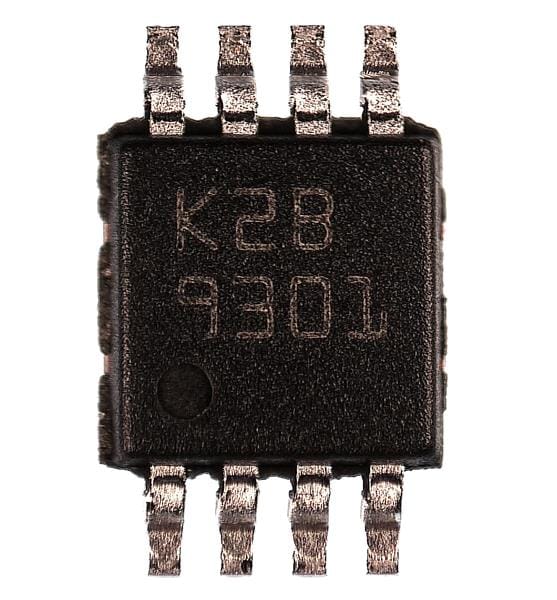

STMicroelectronics TSV792IST Op Amps - Operational Amplifiers High bandwidth (50MHz) Low offset (200 uV) Rail-to-rail 5V Op amp

Shutdown: No Shutdown

Unit Weight: 24 mg

Mounting Style: SMD/SMT

SR - Slew Rate: 30 V/us

Number of Channels: 2 Channel

Supply Voltage - Max: 5.5 V

Supply Voltage - Min: 2.2 V

Ib - Input Bias Current: 2 pA

Operating Supply Current: 5.5 mA

Output Current per Channel: 70 mA

Vos - Input Offset Voltage: 200 uV

GBP - Gain Bandwidth Product: 50 MHz

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C

en - Input Voltage Noise Density: 6.5 nV/sqrt Hz

CMRR - Common Mode Rejection Ratio: 120 dB
