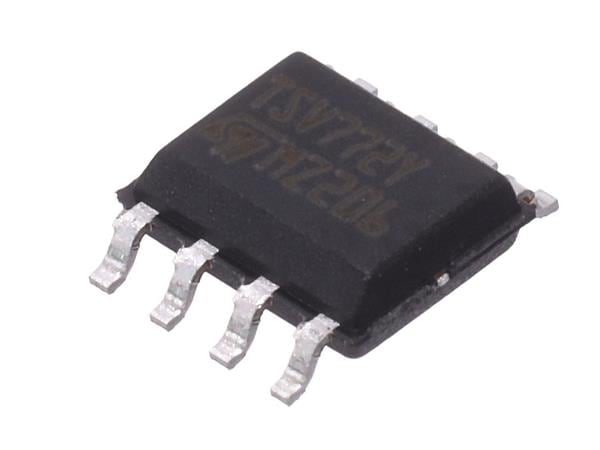

STMicroelectronics TSV772IYDT Operational Amplifiers High bandwidth (20MHz) Low offset (200 µV) rail-to-rail 5V Op amp

Shutdown: Shutdown

Input Type: Rail-to-Rail

Output Type: Rail-to-Rail

Unit Weight: 80 mg

Qualification: AEC-Q100

Mounting Style: SMD/SMT

SR - Slew Rate: 13 V/us

Number of Channels: 2 Channel

Supply Voltage - Max: 5.5 V

Supply Voltage - Min: 2 V

Ib - Input Bias Current: 2 pA

Operating Supply Current: 1.9 mA

Vcm - Common Mode Voltage: 5.6 V

Ios - Input Offset Current: 2 pA

Output Current per Channel: 65 mA

Vos - Input Offset Voltage: 200 uV

GBP - Gain Bandwidth Product: 20 MHz

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C

en - Input Voltage Noise Density: 7 nV/sqrt Hz

CMRR - Common Mode Rejection Ratio: 120 dB

PSRR - Power Supply Rejection Ratio: 110 dB
