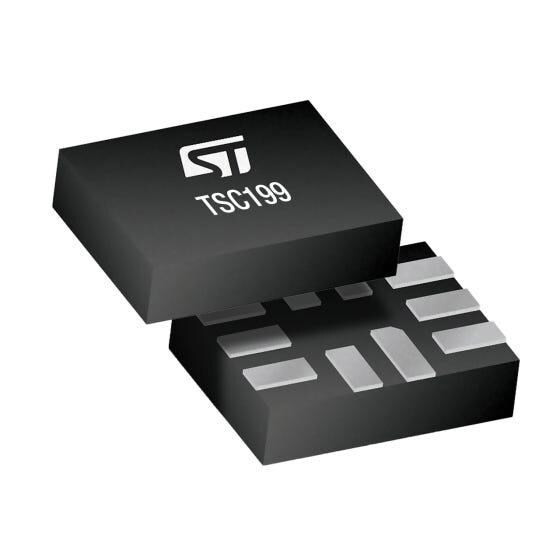

STMicroelectronics TSC199A1IQT Current Sense Amplifiers Low / High side bidirectional, zero-drift, current sense amplifiers

Gain V/V: 50 V/V

Shutdown: No Shutdown

Gain Error: 0.03 %

Unit Weight: 4 mg

Mounting Style: SMD/SMT

SR - Slew Rate: 0.85 V/us

Number of Channels: 1 Channel

Supply Voltage - Max: 26 V

Supply Voltage - Min: 2.7 V

Ib - Input Bias Current: 28 uA

Operating Supply Current: 65 uA

Vcm - Common Mode Voltage: 26 V

Ios - Input Offset Current: 20 nA

Vos - Input Offset Voltage: 150 uV

GBP - Gain Bandwidth Product: 100 kHz

CMRR - Common Mode Rejection Ratio: 100 dB

PSRR - Power Supply Rejection Ratio: 0.1 uV/V
