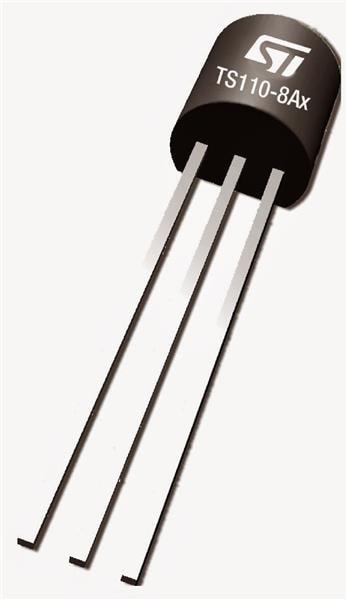

STMicroelectronics TS110-8A1-AP SCRs High surge volt 1.25 A SCR for circuit breaker
ModelTS110-8A1-AP
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Unit Weight: 453.600 mg
REACH - SVHC: Details
Mounting Style: Through Hole
Holding Current Ih Max: 12 mA
Gate Trigger Current - Igt: 100 uA
Gate Trigger Voltage - Vgt: 800 mV
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 40 C
On-State RMS Current - It RMS: 1.25 A
Non Repetitive On-State Current: 20 A
Off-State Leakage Current @ VDRM IDRM: 100 uA
Rated Repetitive Off-State Voltage VDRM: 800 V
