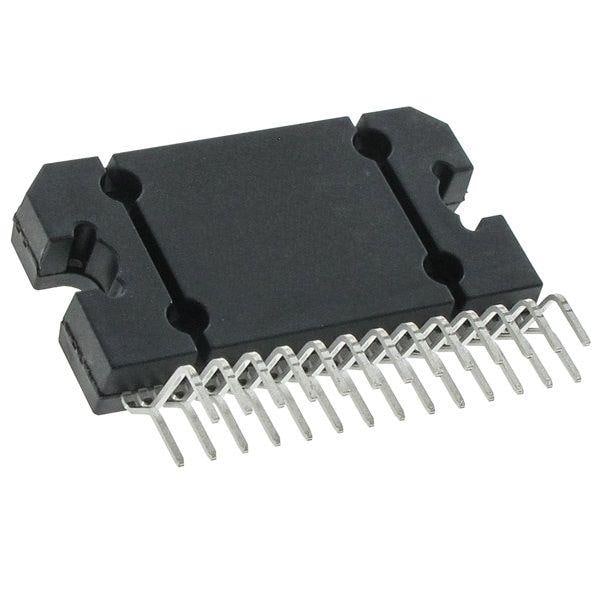

STMicroelectronics TDA7577BLV Audio Power Amplifier 2 x 75 W dual-bridge power amplifier I2C complete diagnostics & "start-stop" pro

Class: Other

Input Type: Analog

Output Type: MOSFET

Supply Type: Single

Unit Weight: 7.800 g

Output Power: 75 W

Qualification: AEC-Q100

Mounting Style: Through Hole

Output Current: 6 A

SR - Slew Rate: 4.5 V/us

THD plus Noise: 0.3 %

Number of Channels: 2 Channel

Supply Voltage - Max: 18 V

Supply Voltage - Min: 6 V

Audio - Load Impedance: 2 Ohms

Pd - Power Dissipation: 86 W

Operating Supply Current: 140 mA

Operating Supply Voltage: 6 V to 18 V

Vos - Input Offset Voltage: 65 mV

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 40 C

CMRR - Common Mode Rejection Ratio: 70 dB

PSRR - Power Supply Rejection Ratio: 75 dB
