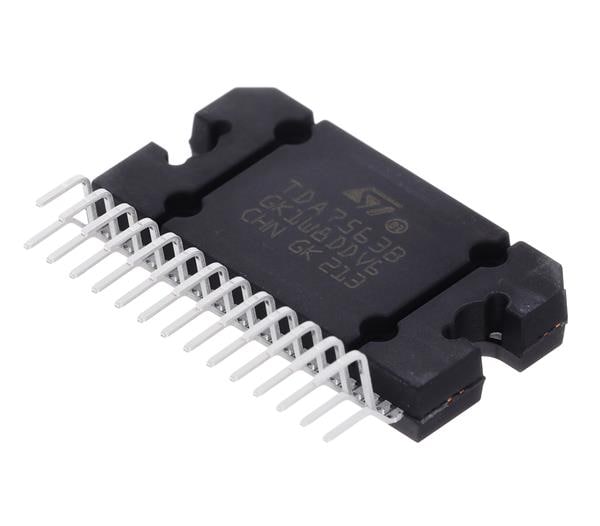

STMicroelectronics TDA7563B 4-Channel Quad 4 x 50W Multi Quad Power Amplifer D

Gain: 30 dB

Class: Class-AB

Width: 4.5 mm

Height: 15.7 mm

Length: 29.23 mm

Input Type: Single

Supply Type: Single

Unit Weight: 7.108 g

Output Power: 50 W

Qualification: AEC-Q100

Mounting Style: Through Hole

Output Current: 8 A

THD plus Noise: 0.2 %

Number of Channels: 4 Channel

Output Signal Type: Differential

Description/Function: Speaker

Supply Voltage - Max: 18 V

Supply Voltage - Min: 8 V

Audio - Load Impedance: 4 Ohms

Pd - Power Dissipation: 85 W

Operating Supply Voltage: 9 V, 12 V, 15 V

Vos - Input Offset Voltage: 100 mV

Maximum Operating Temperature: + 150 C

Minimum Operating Temperature: - 55 C

CMRR - Common Mode Rejection Ratio: 55 dB
