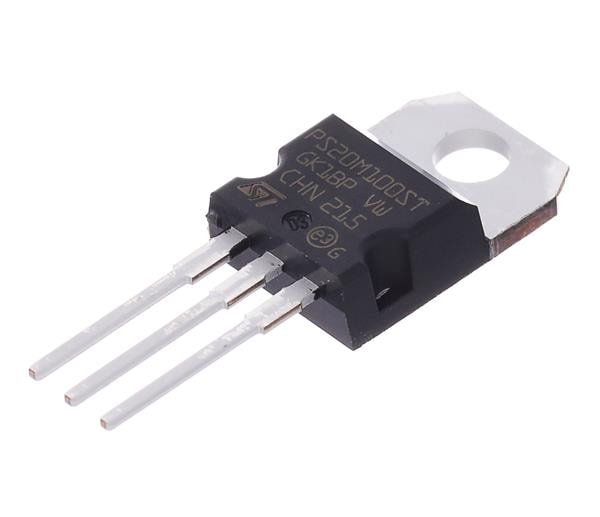

STMicroelectronics STPS20M100ST Schottky Diode 20A 100V

Width: 4.6 mm (Max)

Height: 9.3 mm (Max)

Length: 10.4 mm (Max)

Technology: Si

Unit Weight: 6 g

Configuration: Single Dual Anode

Mounting Style: Through Hole

If - Forward Current: 20 A

Ir - Reverse Current: 40 uA

Vf - Forward Voltage: 850 mV

Ifsm - Forward Surge Current: 530 A

Maximum Operating Temperature: + 150 C

Minimum Operating Temperature: - 65 C

Vrrm - Repetitive Reverse Voltage: 100 V
