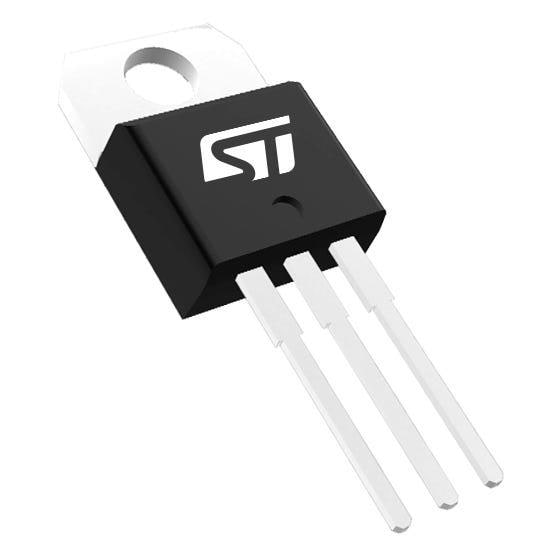

STMicroelectronics STP180N4F6 MOSFETs N-channel 40 V, 2.1 mOhm typ 120 A STripFET F6 Power MOSFET

Technology: Si

Unit Weight: 2 g

Channel Mode: Enhancement

Configuration: Single

Mounting Style: Through Hole

Qg - Gate Charge: 130 nC

Number of Channels: 1 Channel

Transistor Polarity: N-Channel

Pd - Power Dissipation: 190 W

Vgs - Gate-Source Voltage: - 20 V, + 20 V

Id - Continuous Drain Current: 120 A

Maximum Operating Temperature: + 175 C

Minimum Operating Temperature: - 55 C

Rds On - Drain-Source Resistance: 2.7 mOhms

Vds - Drain-Source Breakdown Voltage: 40 V

Vgs th - Gate-Source Threshold Voltage: 3 V
