STMicroelectronics STM8L152K8Y6TR MCUs Ultra-low-power 8-bit MCU 64 Kbytes Flash, 16 MHz CPU, integrated EEPROM

Core: STM8

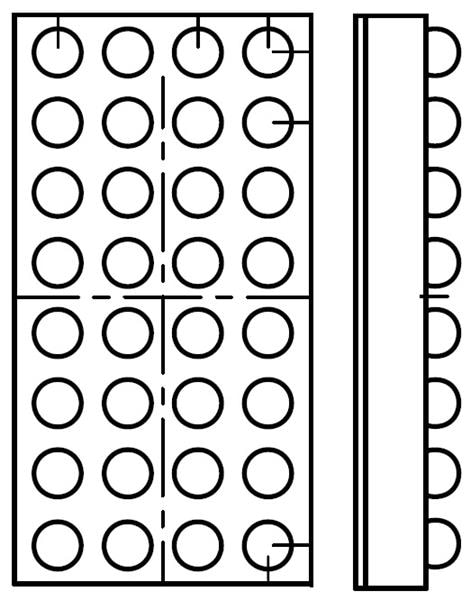

Width: 1.913 mm

Height: 0.555 mm

Length: 3.329 mm

Unit Weight: 7.510 mg

Data RAM Size: 4 kB

Data RAM Type: RAM

Data ROM Type: EEPROM

ADC Resolution: 12 bit

DAC Resolution: 12 bit

Data Bus Width: 8 bit

Interface Type: I2C, SPI, USART

Mounting Style: SMD/SMT

Number of I/Os: 28 I/O

Watchdog Timers: Watchdog Timer, Windowed

Program Memory Size: 64 kB

Program Memory Type: Flash

Supply Voltage - Max: 3.6 V

Supply Voltage - Min: 1.65 V

Number of ADC Channels: 28 Channel

Maximum Clock Frequency: 16 MHz

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
