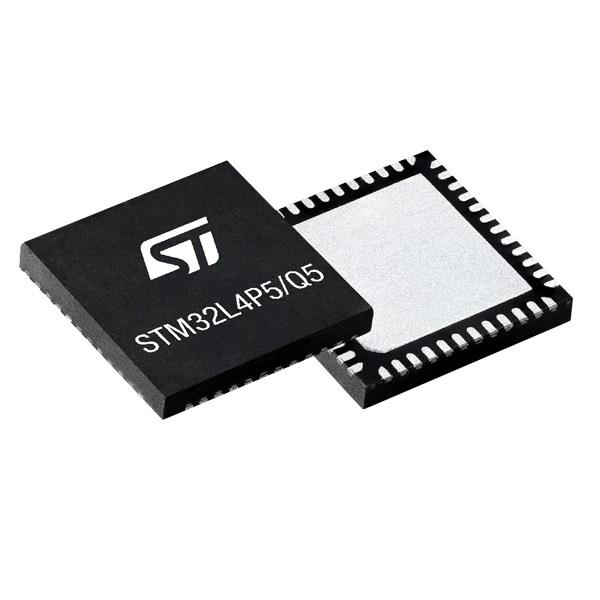

STMicroelectronics STM32L4P5CEU6 ARM Microcontrollers - MCU Ultra-low-power FPU Arm Cortex-M4 MCU 120 MHz 512 kbytes of Flash USB OTG, DFSDM

Core: ARM Cortex M4

Unit Weight: 100 mg

Data RAM Size: 320 kB

ADC Resolution: 2 x 12 bit

Data Bus Width: 32 bit

Mounting Style: SMD/SMT

Number of I/Os: 38 I/O

Moisture Sensitive: Yes

Program Memory Size: 512 kB

Supply Voltage - Max: 3.6 V

Supply Voltage - Min: 1.71 V

Maximum Clock Frequency: 120 MHz

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
