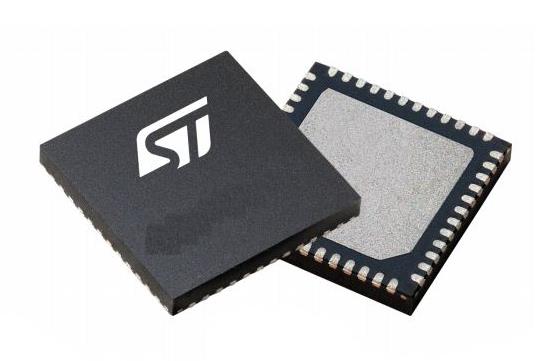

STMicroelectronics STM32L412C8U6TR MCUs Ultra-low-power FPU Arm Cortex-M4 MCU 80 MHz 64 Kbytes of Flash memory, USB

Core: ARM Cortex M4

I/O Voltage: 5.5 V

Data RAM Size: 40 kB

Data RAM Type: SRAM

ADC Resolution: 12 bit

Data Bus Width: 32 bit

Interface Type: I2C, LIN, SPI, UART, USART, USB

Mounting Style: SMD/SMT

Number of I/Os: 38 I/O

Watchdog Timers: Watchdog Timer, Windowed

Processor Series: STM32L

Moisture Sensitive: Yes

Program Memory Size: 64 kB

Program Memory Type: Flash

Supply Voltage - Max: 3.6 V

Supply Voltage - Min: 1.71 V

Analog Supply Voltage: 3.6 V

Number of ADC Channels: 10 Channel

Maximum Clock Frequency: 80 MHz

Number of Timers/Counters: 7 Timer

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
