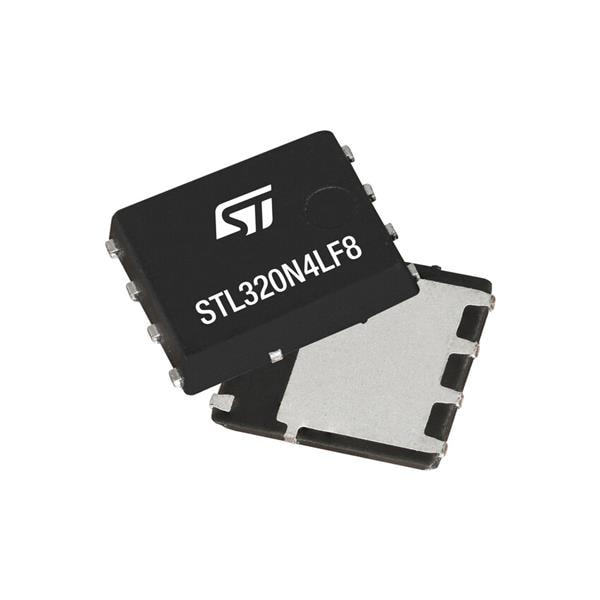

STMicroelectronics STL320N4LF8 MOSFETs N-channel enhancement mode logic level 40V 0.8mOhm 360A STripFET F8 Power MOSFET

Technology: Si

Channel Mode: Enhancement

Mounting Style: SMD/SMT

Qg - Gate Charge: 43 nC

Number of Channels: 1 Channel

Transistor Polarity: N-Channel

Pd - Power Dissipation: 188 W

Vgs - Gate-Source Voltage: - 20 V, + 20 V

Id - Continuous Drain Current: 360 A

Maximum Operating Temperature: + 175 C

Minimum Operating Temperature: - 55 C

Rds On - Drain-Source Resistance: 800 uOhms

Vds - Drain-Source Breakdown Voltage: 40 V

Vgs th - Gate-Source Threshold Voltage: 2 V
