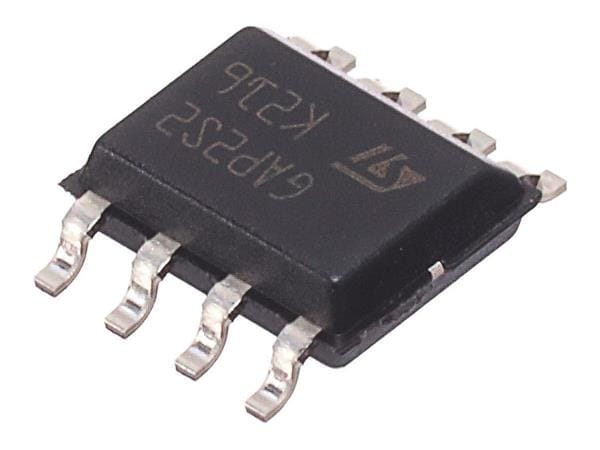

STMicroelectronics STGAP2SMTR Half-Bridge Galvanically isolated 4 A single gate driver

Fall Time: 30 ns

Rise Time: 30 ns

Logic Type: CMOS, TTL

Technology: Si

Unit Weight: 80 mg

Configuration: Non-Inverting

Mounting Style: SMD/SMT

Output Current: 4 A

Output Voltage: 1.7 kV

Number of Drivers: 1 Driver

Number of Outputs: 1 Output

Moisture Sensitive: Yes

Supply Voltage - Max: 5.5 V

Supply Voltage - Min: 3 V

Pd - Power Dissipation: 850 mW

Operating Supply Current: 500 uA

Maximum Turn-On Delay Time: 100 ns

Maximum Turn-Off Delay Time: 100 ns

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
