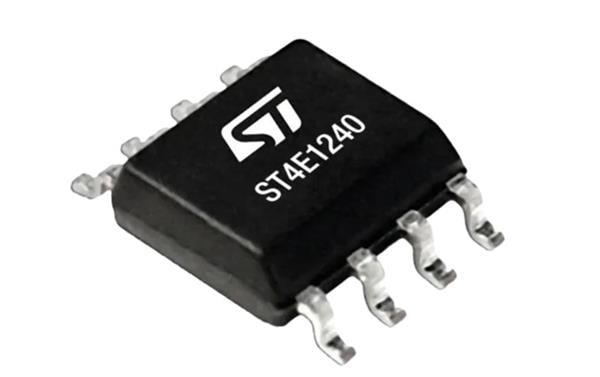

STMicroelectronics ST4E1240DT High Speed High-speed 3.3V / 5V RS485 trans +- 12 kV IEC 61000-4-2 contact ESD protect

Duplex: Half Duplex

Function: Transceiver

Shutdown: Shutdown

Data Rate: 40 Mb/s

Input Voltage: 3 V to 5.5 V

Mounting Style: SMD/SMT

Output Current: 70 mA

Number of Drivers: 1 Driver

Number of Receivers: 1 Receiver

Supply Voltage - Max: 5.5 V

Supply Voltage - Min: 3 V

Pd - Power Dissipation: 370 mW

Propagation Delay Time: 20 ns

Operating Supply Current: 1.77 mA

Operating Supply Voltage: 3 V to 5.5 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
