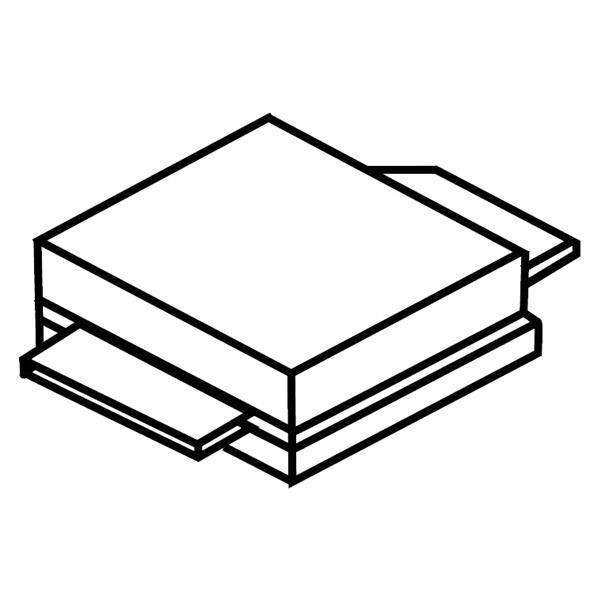

STMicroelectronics ST16045 RF Power MOSFET 45 W, 28 V, 0.7 to 1.7 GHz RF Power LDMOS transistor

Gain: 20 dB

Technology: Si

Output Power: 45 W

Mounting Style: SMD/SMT

Transistor Type: LDMOS FET

Moisture Sensitive: Yes

Number of Channels: 1 Channel

Operating Frequency: 1.33 GHz

Transistor Polarity: N-Channel

Vgs - Gate-Source Voltage: - 6 V, + 10 V

Maximum Operating Temperature: + 200 C

Vds - Drain-Source Breakdown Voltage: 65 V

Vgs th - Gate-Source Threshold Voltage: 2.5 V
