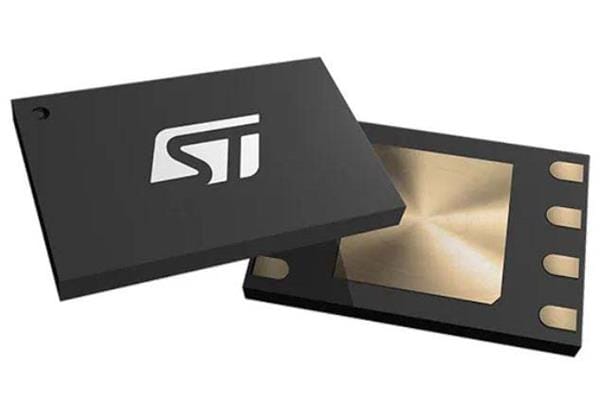

STMicroelectronics M24M02E-FMC6TG EEPROM 2 Mbit Serial I2C bus configurable device address software write protect

Memory Size: 2 Mbit

Unit Weight: 16 mg

Organization: 2 k x 16

Data Retention: 200 Year

Interface Type: I2C

Mounting Style: SMD/SMT

Supply Current - Max: 2 uA

Supply Voltage - Max: 5.5 V

Supply Voltage - Min: 1.6 V

Maximum Clock Frequency: 1 MHz

Operating Supply Current: 2 uA

Operating Supply Voltage: 1.6 V to 5.5 V

Active Read Current - Max: 1 mA

Output Enable Access Time: 900 ns

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
