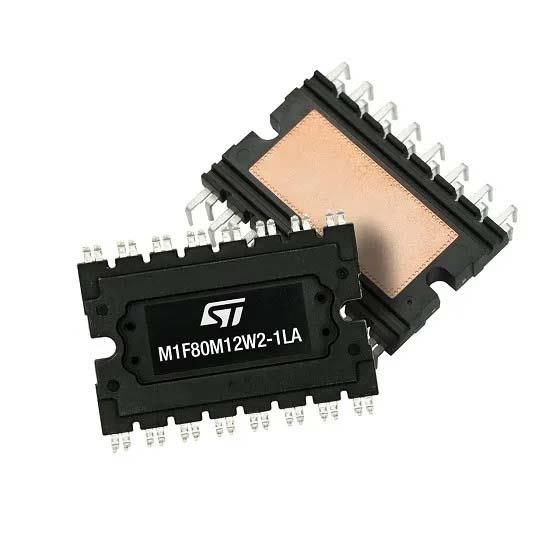

STMicroelectronics M1F80M12W2-1LA Power Modules Automotive ACEPACK DMT-32 fourpack topology 1200V 78 mOhm SiC Power MOSFET, NTC
ModelM1F80M12W2-1LA
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Width: 27.4 mm
Height: 5.7 mm
Length: 44 mm
Technology: SiC
Unit Weight: 13 g
Configuration: Single
Mounting Style: Press Fit
Id - Continuous Drain Current: 30 A
Maximum Operating Temperature: + 175 C
Minimum Operating Temperature: - 40 C
Rds On - Drain-Source Resistance: 108 mOhms
Vds - Drain-Source Breakdown Voltage: 1.2 kV
Vgs th - Gate-Source Threshold Voltage: 3.2 V
