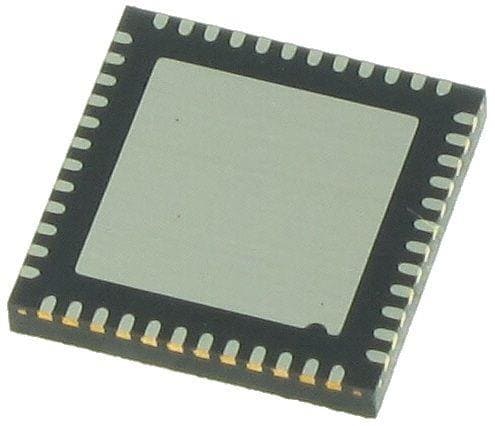

STMicroelectronics LED7708TR LED Lighting Drivers 16-Ch 85mA LED DRV 4-Wire Boost CNTRL

Features: 4 Wire Serial Interface

Topology: Boost

Unit Weight: 130 mg

Input Voltage: 3.6 V to 36 V

Mounting Style: SMD/SMT

Output Current: 85 mA

Output Voltage: 36 V

Number of Outputs: 6 Output

Moisture Sensitive: Yes

Number of Channels: 16 Channel

Input Voltage - Max: 36 V

Input Voltage - Min: 3.6 V

Operating Frequency: 250 kHz to 1 MHz

Supply Current - Max: 7 mA

Maximum Operating Temperature: + 150 C

Minimum Operating Temperature: - 40 C
