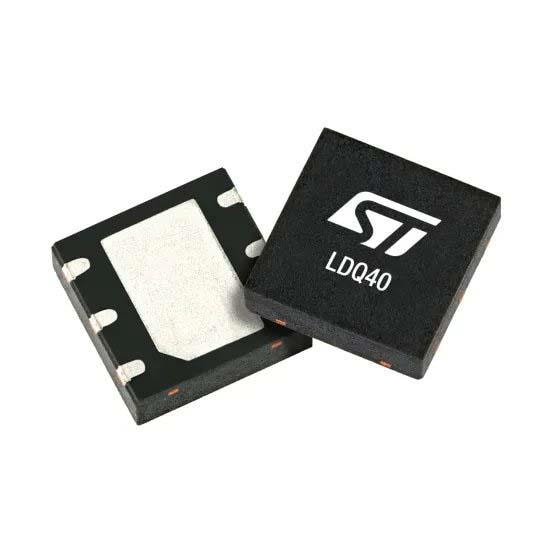

STMicroelectronics LDQ40PU50RY LDOs 250 mA low dropout LDO

Polarity: Positive

Tolerance: 1.5 %

Output Type: Fixed

Unit Weight: 10 mg

Qualification: AEC-Q100

Mounting Style: SMD/SMT

Output Current: 250 mA

Output Voltage: 5 V

Dropout Voltage: 500 mV

Load Regulation: 2 mV

Number of Outputs: 1 Output

Quiescent Current: 90 uA

Moisture Sensitive: Yes

Input Voltage - Max: 40 V

Input Voltage - Min: 3.3 V

Dropout Voltage - Max: 1 V

Operating Temperature Range: - 40 C to + 150 C

Maximum Operating Temperature: + 150 C

Minimum Operating Temperature: - 40 C

PSRR / Ripple Rejection - Typ: 55 dB
