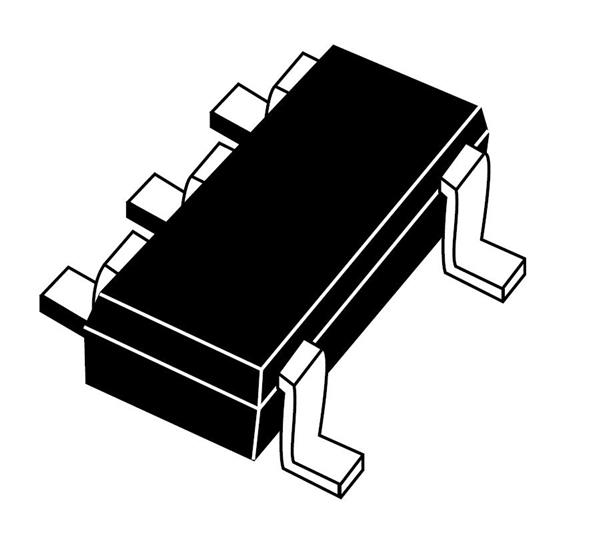

STMicroelectronics LDK320AM15R High Accuracy and High PSRR Voltage Regulator 200 mA low quiescent current and high PSRR volt regulator

Polarity: Positive

Output Type: Fixed

Unit Weight: 16 mg

Mounting Style: SMD/SMT

Output Current: 200 mA

Output Voltage: 1.5 V

Dropout Voltage: 200 mV

Line Regulation: 0.001 %/V

Load Regulation: 0.001 %/mA

Number of Outputs: 1 Output

Quiescent Current: 70 uA

Input Voltage - Max: 18 V

Input Voltage - Min: 2.5 V

Output Voltage Range: 1.2 V to 12 V

Dropout Voltage - Max: 350 mV

Voltage Regulation Accuracy: 0.5 %

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C

PSRR / Ripple Rejection - Typ: 88 dB
