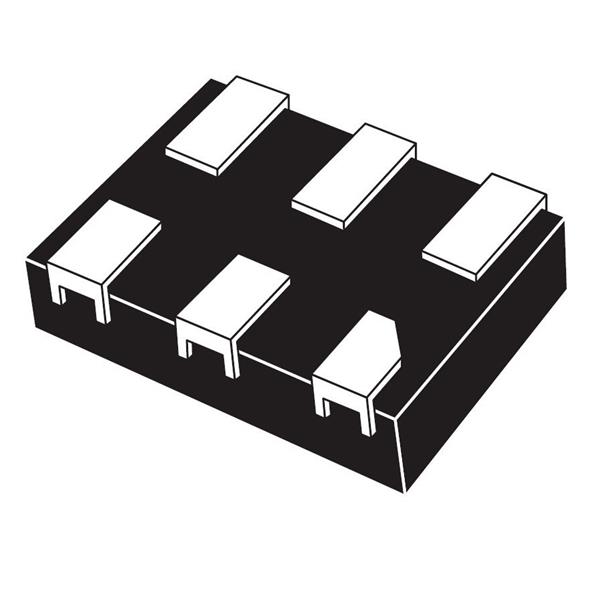

STMicroelectronics LD39130SPU25R Linear Regulator with Automatic Green Mode 300 mA very low quiescent current Linear regulator IC automatic Green mode

Polarity: Positive

Tolerance: 1 %

Output Type: Adjustable

Mounting Style: SMD/SMT

Output Current: 300 mA

Output Voltage: Adjustable

Development Kit: STEVAL-LDO001V1

Dropout Voltage: 300 mV

Line Regulation: 0.02 %/V

Load Regulation: 0.004 %/mA

Number of Outputs: 1 Output

Quiescent Current: 45 uA

Input Voltage - Max: 5.5 V

Input Voltage - Min: 1.4 V

Voltage Regulation Accuracy: 2 %

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C

PSRR / Ripple Rejection - Typ: 70 dB
