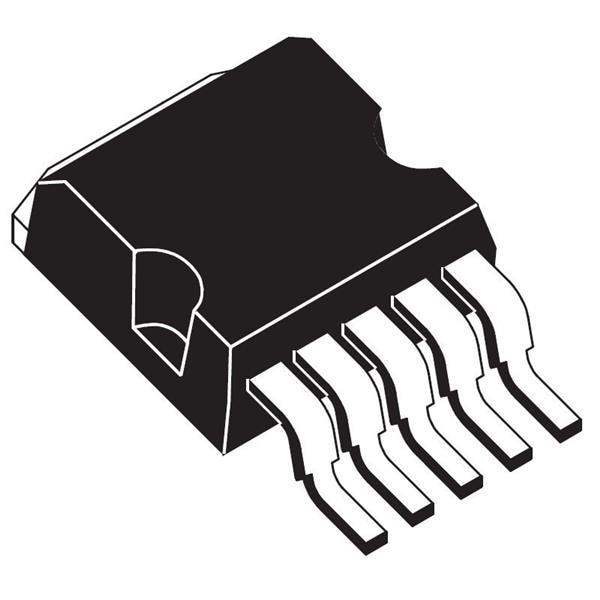

STMicroelectronics LD29300P2MTR LDO Voltage Regulators Adjust 3.0A Very Low

Width: 9.35 mm

Height: 4.8 mm

Length: 10.4 mm

Polarity: Positive

Output Type: Adjustable

Unit Weight: 2.240 g

Mounting Style: SMD/SMT

Output Current: 3 A

Output Voltage: Adjustable

Dropout Voltage: 700 mV

Line Regulation: 0.5 %

Load Regulation: 1 %

Number of Outputs: 1 Output

Quiescent Current: 50 mA

Reference Voltage: 1.23 V

Input Voltage - Max: 30 V

Input Voltage - Min: 2.5 V

Dropout Voltage - Max: 700 mV at 3 A

Ib - Input Bias Current: 20 mA

Voltage Regulation Accuracy: 1 %

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
