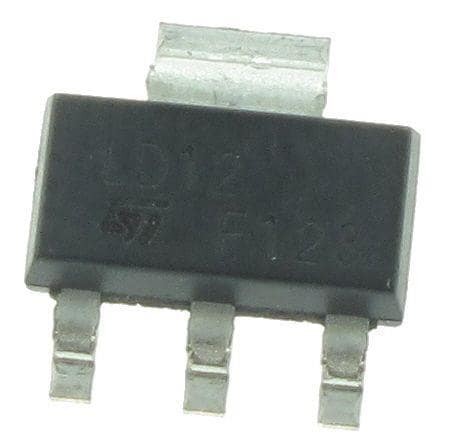

STMicroelectronics LD1117S12CTR LDO Voltage Regulators Low drop fixed Adj pos volt reg

Width: 3.5 mm

Height: 1.8 mm

Length: 6.5 mm

Polarity: Positive

Output Type: Fixed

Unit Weight: 250 mg

Mounting Style: SMD/SMT

Output Current: 950 mA

Output Voltage: 1.2 V

Dropout Voltage: 1 V

Line Regulation: 1 %

Load Regulation: 1 %

Number of Outputs: 1 Output

Quiescent Current: 5 mA

Reference Voltage: 1.224 V

Input Voltage - Max: 15 V

Input Voltage - Min: 3.3 V

Dropout Voltage - Max: 1.1 V at 100 mA

Pd - Power Dissipation: 12 W

Ib - Input Bias Current: 5 mA

Voltage Regulation Accuracy: 1 %

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
