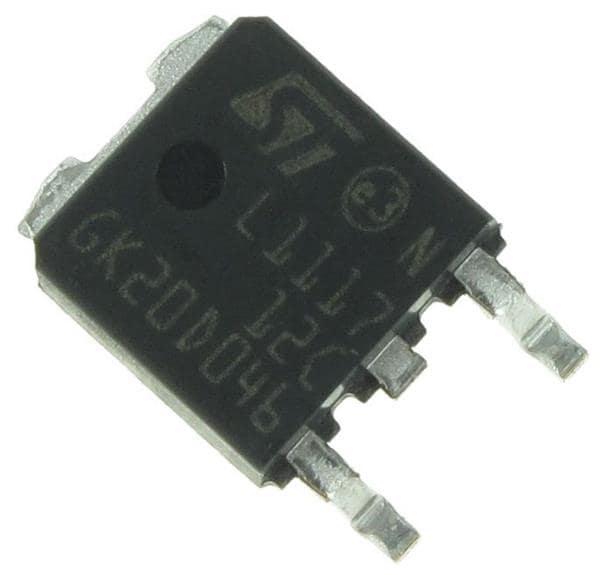

STMicroelectronics LD1117DT12CTR LDO Voltage Regulators Adjustable fixed LDO 2.85V 800 mA

Polarity: Positive

Tolerance: 1 %

Output Type: Fixed

Unit Weight: 350 mg

Mounting Style: SMD/SMT

Output Current: 800 mA

Output Voltage: 1.2 V

Dropout Voltage: 1.1 V

Line Regulation: 0.035 %

Load Regulation: 0.1 %

Number of Outputs: 1 Output

Quiescent Current: 5 mA

Reference Voltage: 1.2 V

Input Voltage - Max: 15 V

Dropout Voltage - Max: 1 V

Pd - Power Dissipation: 12 W

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
