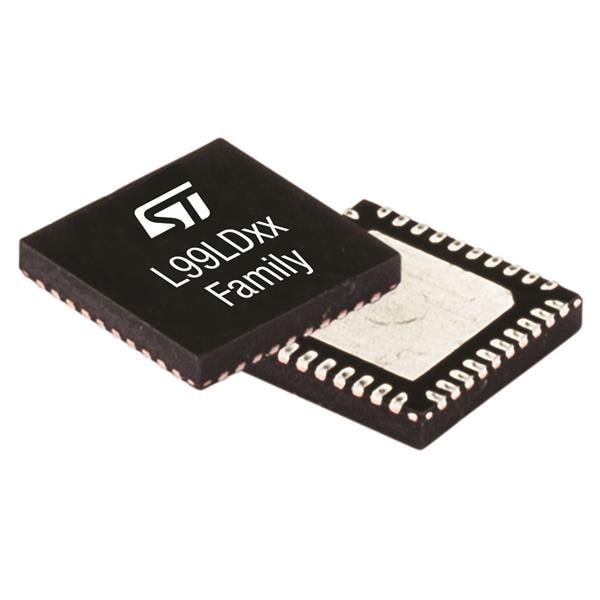

STMicroelectronics L99LD20Q6TR Buck Converter High efficiency constant current LED driver for automotive

Features: Integrated MOSFET

Topology: Buck

Unit Weight: 83 mg

Input Voltage: 5.5 V to 24 V

Qualification: AEC-Q100

Mounting Style: SMD/SMT

Output Current: 1.5 A

Output Voltage: 50 V

Number of Outputs: 2 Output

Moisture Sensitive: Yes

Number of Channels: 2 Channel

Input Voltage - Max: 24 V

Input Voltage - Min: 5.5 V

Supply Current - Max: 30 mA

Maximum Operating Temperature: + 150 C

Minimum Operating Temperature: - 40 C
