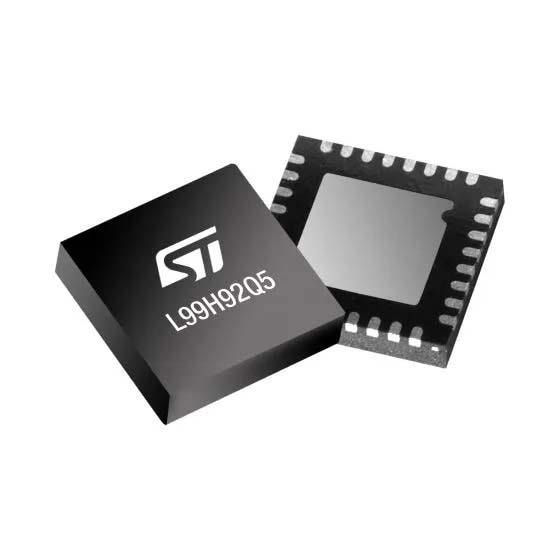

STMicroelectronics L99H92Q5-TR Half-Bridge H-Bridge Gate Driver for Automotive Applications

Shutdown: Yes

Fall Time: 200 ns

Rise Time: 200 ns

Technology: Si

Unit Weight: 70 mg

Configuration: Non-Inverting

Qualification: AEC-Q100

Mounting Style: SMD/SMT

Output Current: 70 mA

Number of Drivers: 2 Driver

Number of Outputs: 2 Output

Moisture Sensitive: Yes

Input Voltage - Max: 28 V

Input Voltage - Min: 4.51 V

Supply Voltage - Max: 28 V

Supply Voltage - Min: 6 V

Propagation Delay - Max: 2 us

Operating Supply Current: 4.5 mA

Maximum Operating Temperature: + 150 C

Minimum Operating Temperature: - 40 C
