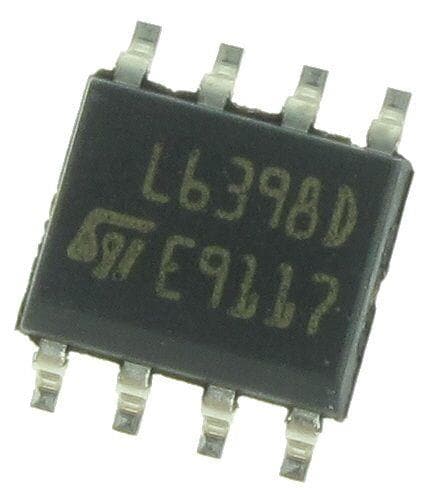

STMicroelectronics L6398DTR High-Side, Low-Side 600V 290 mA Source 430 mA sink BCD

Fall Time: 35 ns

Rise Time: 75 ns

Technology: Si

Unit Weight: 124.600 mg

Mounting Style: SMD/SMT

Output Current: 430 mA

Output Voltage: - 11 V to 580 V

Number of Drivers: 2 Driver

Number of Outputs: 2 Output

Moisture Sensitive: Yes

Supply Voltage - Max: 20 V

Supply Voltage - Min: 10 V

Pd - Power Dissipation: 800 mW

Operating Supply Current: 90 uA

Maximum Turn-On Delay Time: 200 ns

Maximum Turn-Off Delay Time: 200 ns

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
